Just a quick update.
I screwed up when I checked specs on the frame months ago. I didn't get into enough detail and didn't pick up on the fact that the front is tweaked. When I was mocking up the front sheet metal [in preparation to install inner fenders to hang PCM], I found that the front wheels ended up in the fender wells in different spots on each side. After trying to shift body for a week, I bit the bullet and pulled body off frame again. I got into more detail with specs and found the front to be pushed to the passenger side by a half inch and the drivers side of the front to be pushed forward about 7/8 of an inch. I am now looking for a frame shop to fix it. this will no doubt change where the engine mounts on the cross member which will cause all kinds of adjustments.
I can't believe I didn't catch it the first time.
Rob
Glad to hear you got it sorted out. Were you able to use the method I showed you to check it out?
To bad you weren't down this way. It's hard to find a true frame shop these day since most cars are unitized construction. We have a guy down this way that specialize in chevelles if all else fails.
Thanks guys! It is going in tomorrow. I called all over hell and back. This guy showed me the rack and the computer and software that goes with it. He is going to throw it into manual mode and get this pig straightened out I hope.
Joseph. that is exactly where I started. It was good to meet you this weekend. I hope that truck goes go good use!
Thanks guys! It is going in tomorrow. I called all over hell and back. This guy showed me the rack and the computer and software that goes with it. He is going to throw it into manual mode and get this pig straightened out I hope.
Joseph. that is exactly where I started. It was good to meet you this weekend. I hope that truck goes go good use!
Rob
Good to meet you too! Glad I was able to point you in the right direction so you could get this mistery figured out.
Frame is straight. The passenger side was smashed back. The opposite of what I thought was wrong. The crack in the frame that I found months ago is obviously from the passenger side smash. I am still very upset with myself for not finding this months ago, but I guess I need to move on.
Body back on, engine/trans back in, Lokar floor mount shifter installed, Lokar gas pedal and cable installed and on to the wiring.
I put the PCM and battery on the Drivers side front like the truck had it. Then I plan to use a stockish intake on the passenger side.
I was just going to leave the harness untouched with pigtails to go from truck injectors to ls1 injectors, then I decided to delete what I don't need, then I decided to re-route some of it. I removed truck injector connectors and soldered in the ls1 injector connectors. I will have two runs on top of the intake, one on top of each fuel rail...
I still have a few wires I am not sure of and I have no clue as to how to wire up the AC to have the PCM involved in it. I have seen schematics and threads talking about it, but it hasn't come clear in my head yet.
Next up is the harness for the rest of the car. This car was bare when I got it. Very frustrating at times that I have to install everything!!!

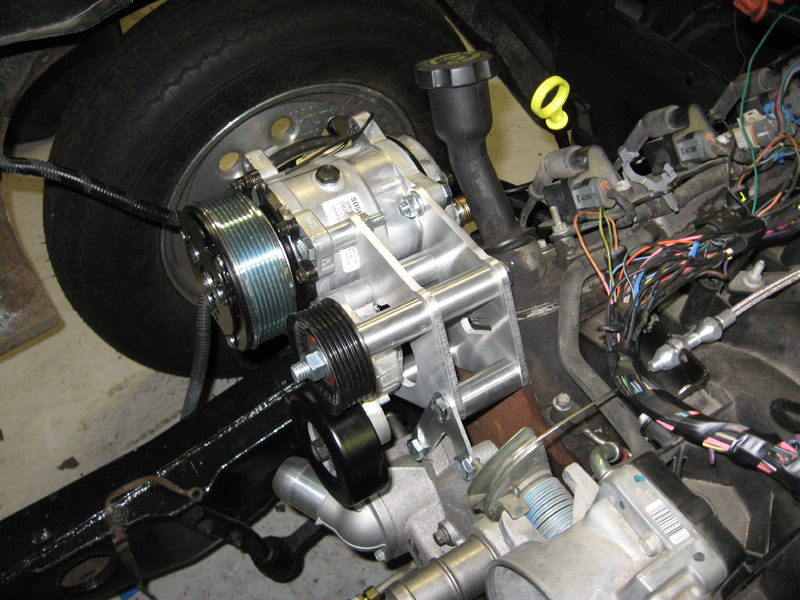

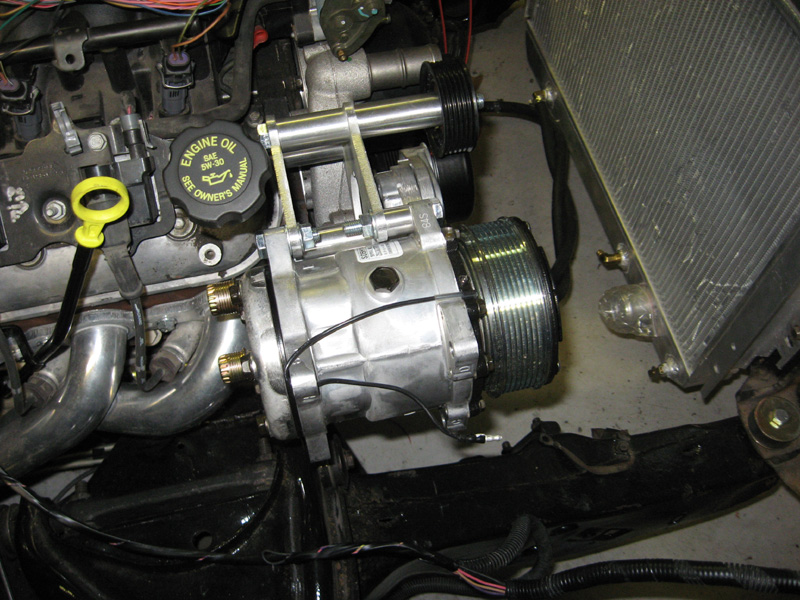

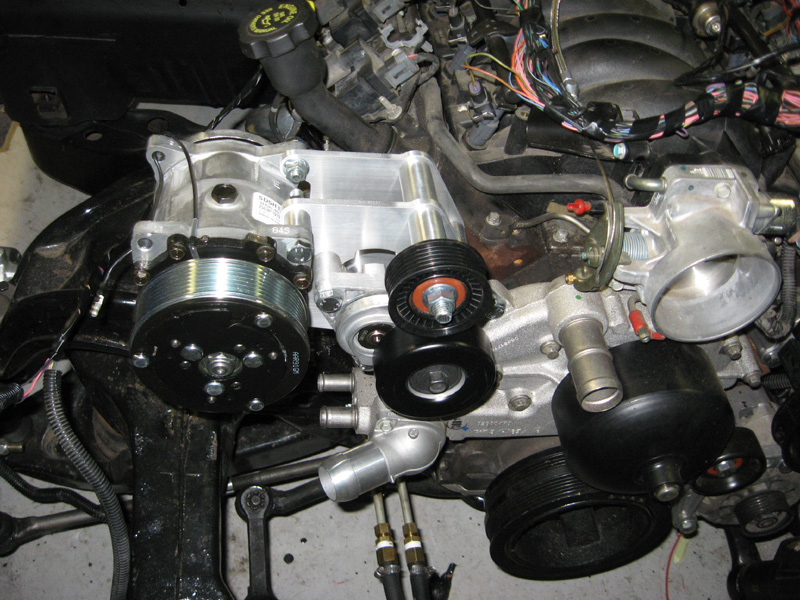

I don't do too much during the week. If I do, I need short & sweet little projects I can complete before I get tired. I got the rest of my vintage air kit yesterday, so I slapped the Kwik Performance brackets and the compressor on last night....

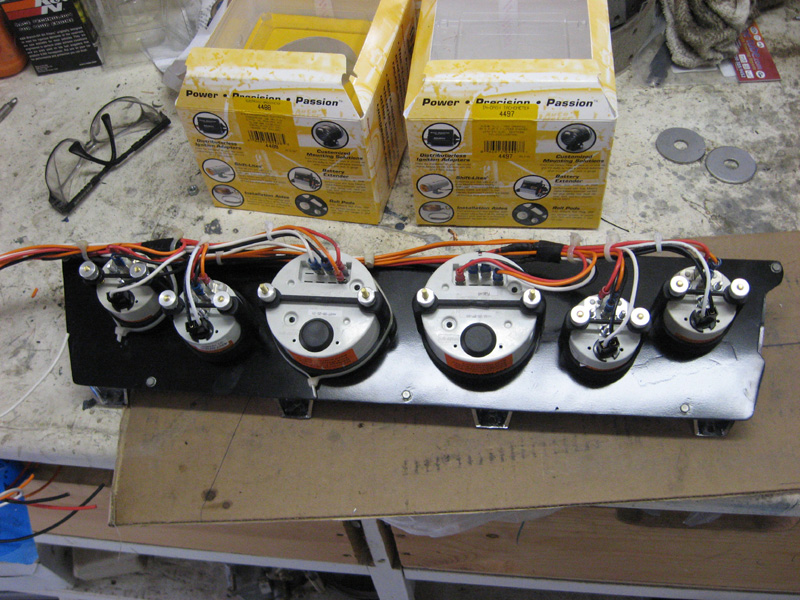

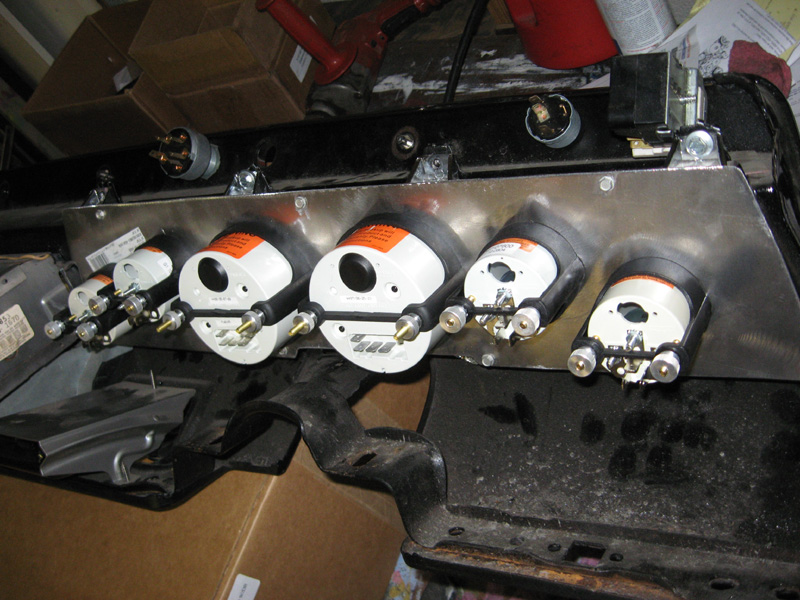

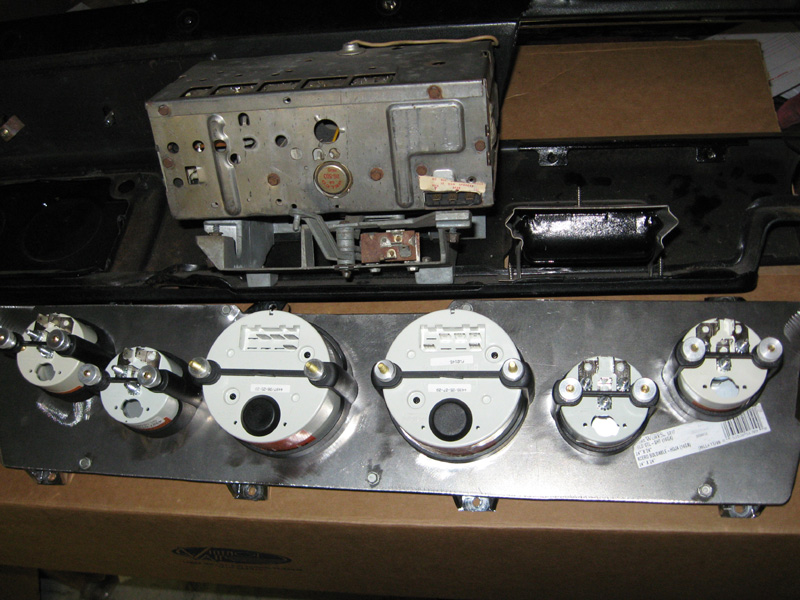

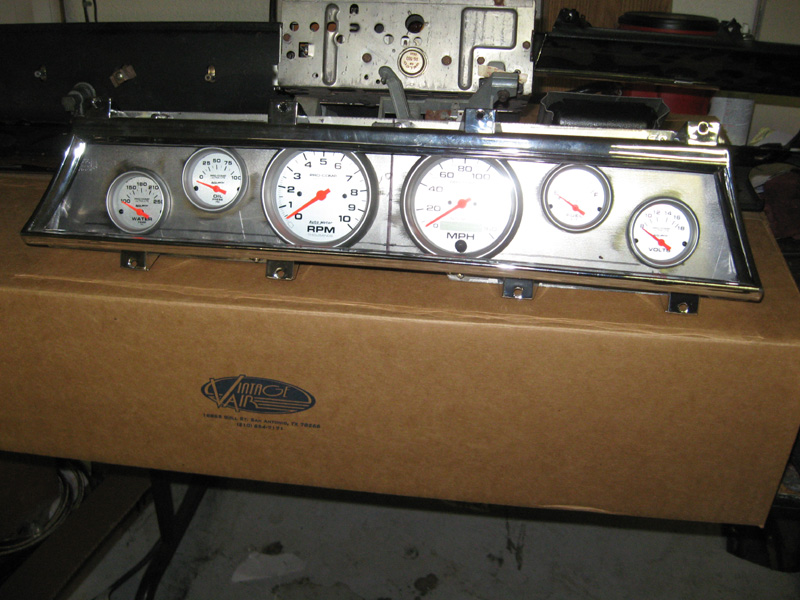

Tonight's project was to pull the stock Speedo out of my dash and figure out how to put new autometer guages into it. this is what I came up with....

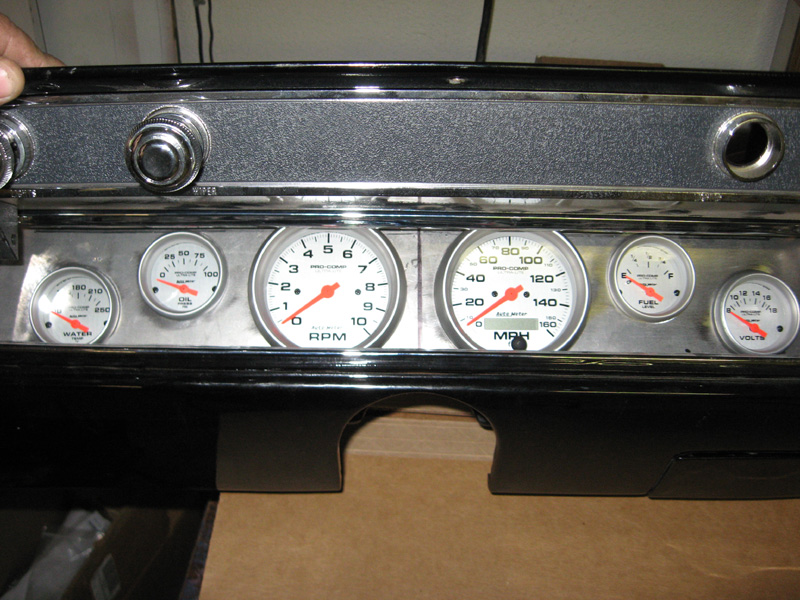

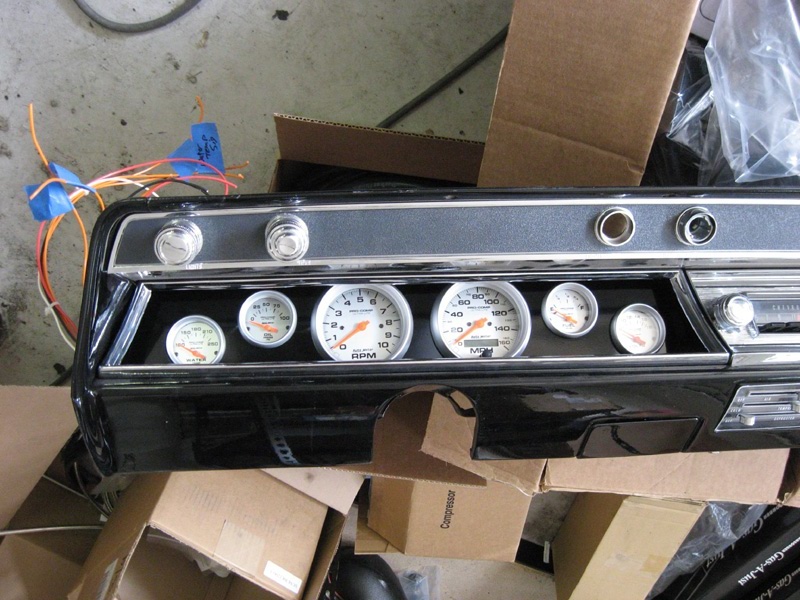

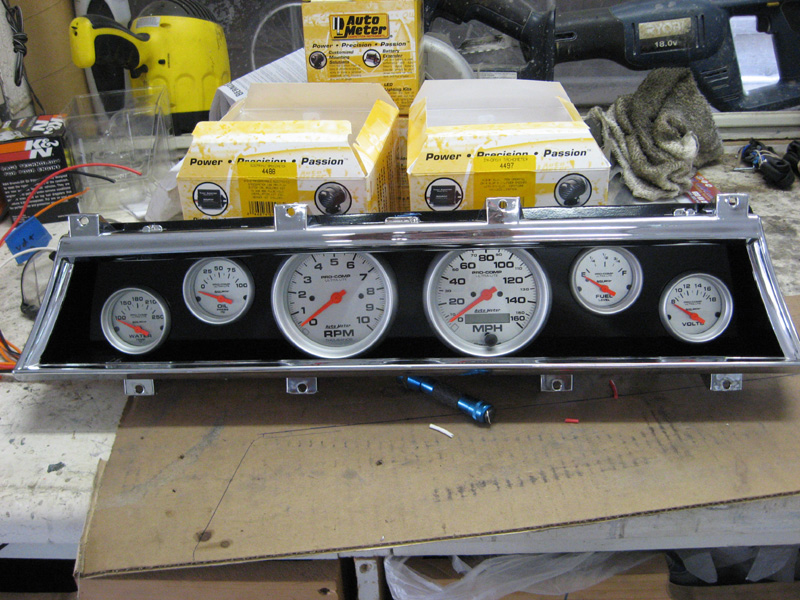

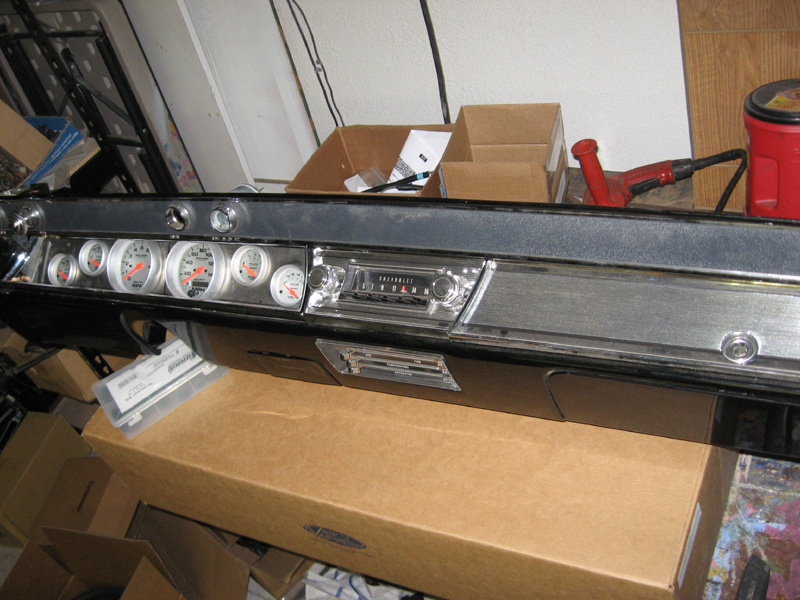

chrome trim and guages installed into the dash...
I probably should have used a smaller tach and speedo, but 3 3/8" is already pretty small for my taste. just don't like how the trim of the two ends up behind the chrome trim. Oh well, I think I can live with it. Just need to paint the 16 guage sheet metal black to match rest of dash.
now to make the harness.
finish engine harness, body harness, dash harness, vintage air kit, battery, plumbing [radiator, power steering & trans cooler - was waiting on condensor to mount trans cooler], fluids, drive shaft and I think I am real close to firing this thing up. That would be really cool!!! I don't have all the wiring figured out yet, but with all the info on this site, I am sure I can get it straight in my head.
Thanks for the input guys. I finally feel like I am making some progress after all these months. Then you start writing down everything you still need to do......hehehehehe

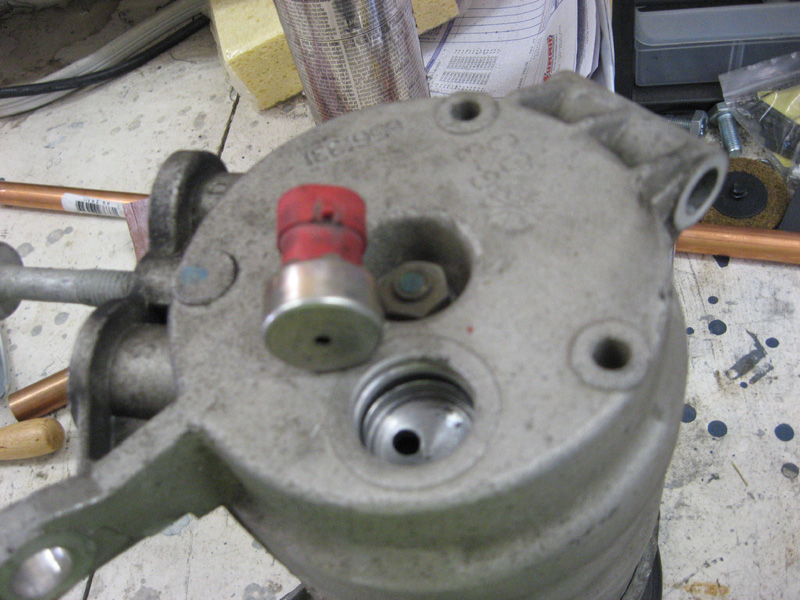

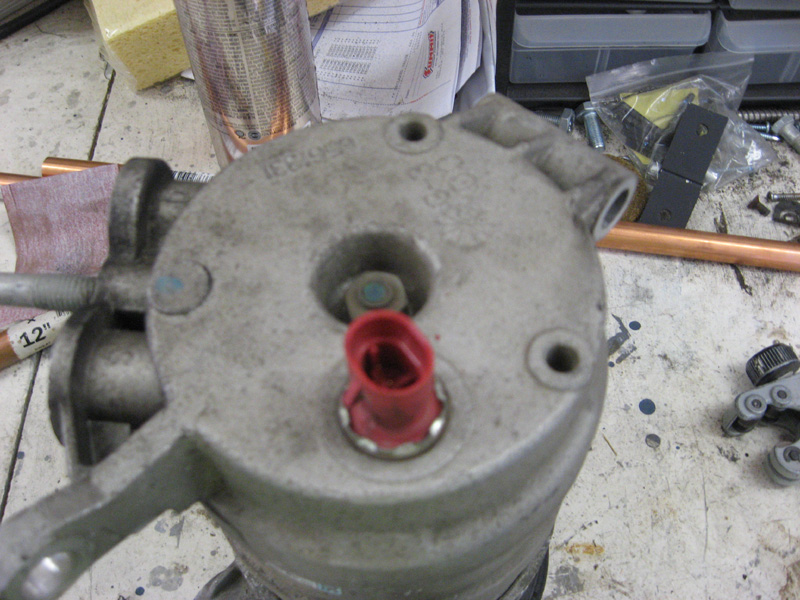

I feel like I have been wiring for a month straight. I dream about wiring :-) . After reading about AC wiring on the LS1's, I assumed it was the same for a '2000 LQ4 and I bought the braze in high pressure port, a crimp on port and the LS1 3-wire trinary switch. Well........My harness doesn't work that way. The LQ4 has a 2-wire high pressure switch in the back of the stock compressor.....

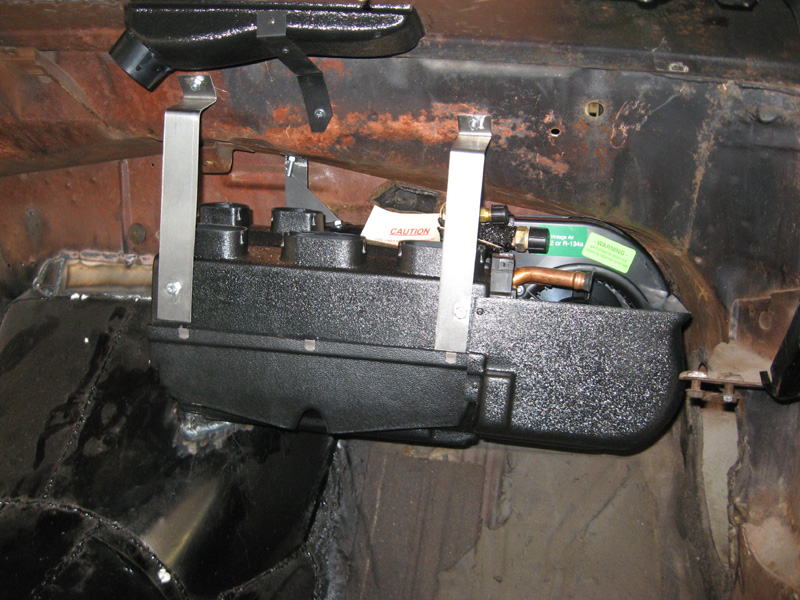

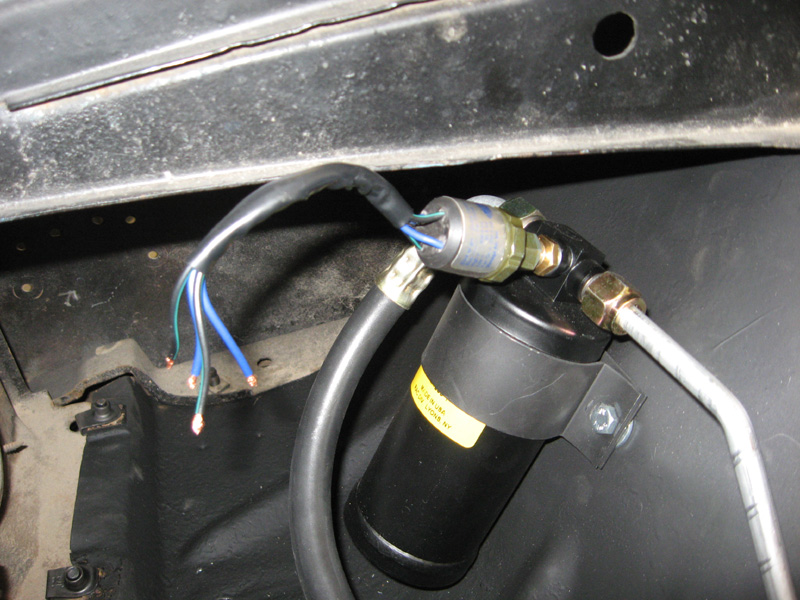

So my lack of proper research cost me some money. Turns out Vintage Air sells a low pressure/high pressure trinary switch that screws right into the drier [with the proper adapter]. It will also control the fans if you want it to.
It is a two wire switch, but when pressure is "good", the circuit is closed and I think the stock LQ4 switch circuit is open when pressure is "good". So I am going to use a relay to make the VA switch work like the stock LQ4 switch. See diagram below....
It will be a while before I get to test it. More progress pics....

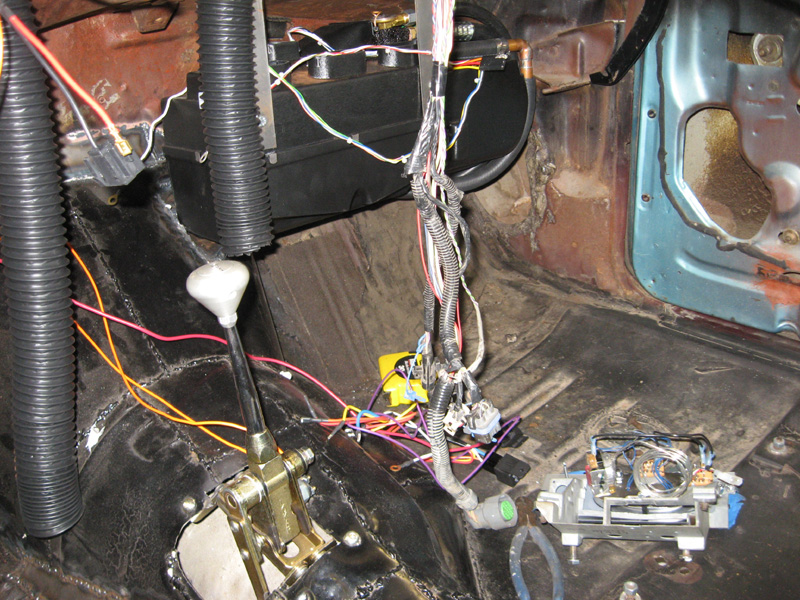

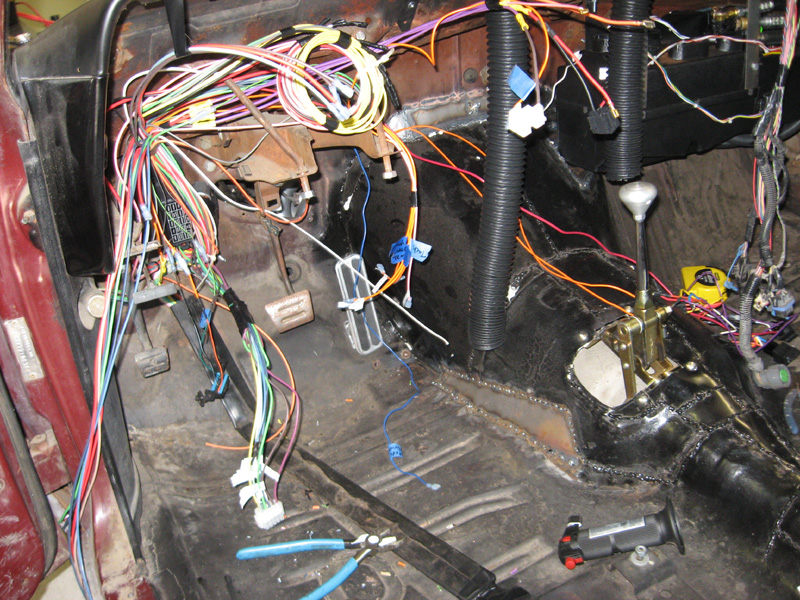

Decided to start installing the summit universal harness in the chevelle. This car didn't have 1 wire in it when I bought it...

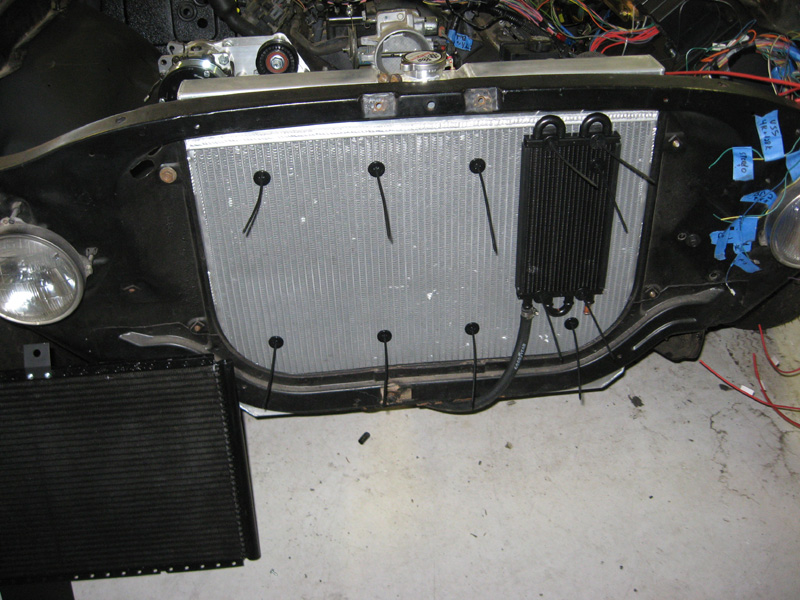

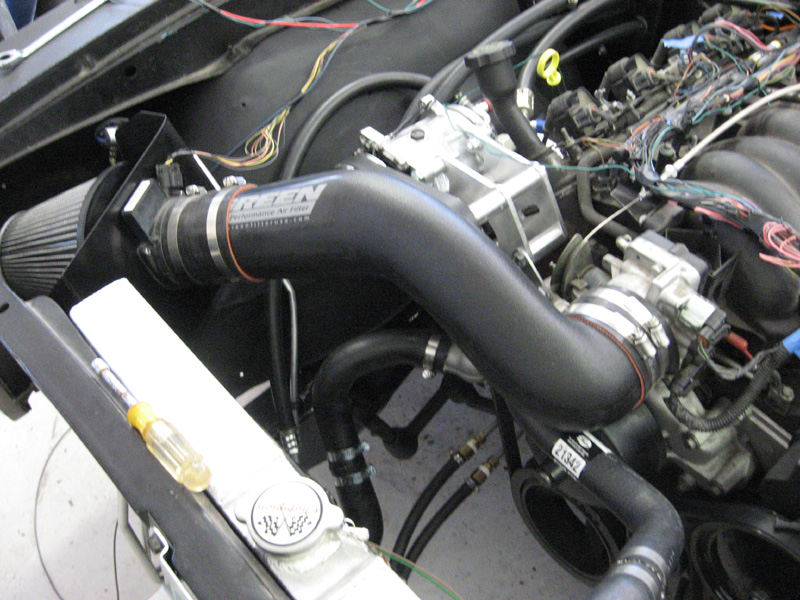

Radiator hoses/intake/MAF...
Finished routing the body harness, but I have issues with it. When I turn the key, nothing is getting power including the PCM. So I hardwired PCM to start switch to see if I could get HP Tuners to see the PCM. Got that figured out and saved the stock LQ4 tune to my server. I then started playing with it [HP Tuners that is] and got motivated to try to start this thing up.....run to Kragen to get oil, trans fluid, coolant. Put gas in the tank and start to get nervous. I turned the key to start and it turned over and started for a second. Pretty excited but runs real rough and dies. figured out I didn't hook the vaccum hose from back of intake to brake booster. Plugged that up and it runs smooth. A lot of work to do yet, but happy to hear it fire!!!! Cheasy video to follow.....
Here is a cheesy startup video.... Some idiot forgot that he didn't have the power steering lines in so I can't start it up until I get that figured out. Hope I didn't screw up my PS pump!
I got a 67 chevelle suspensioned out and scrapping quarters it so low i put a lq4 in it and moved motor mounts back about 2 1/2 to 3 inches putting most of weight behind front wheels, problem truck oil pan is too big hangs too low 2 inches off ground wondering if f body oil pan would clear a body frame
.. Classic youngsta
Rob looks great, just 1 tip , I would notch the holes in the dash where it bolts up to the steering column .at some point you will have to install the column and will have to take dash in and out a few times, notching it will keep you from dropping the column completely and possibly damaging your headers if you have them, I was planning on installing the dash once - I'm up to about 6 times so far.JOHN
what bezels are you using for the ac?look at my link before you cut any holes, john, I can call you late-r pm me your #look at post # 177 there is a pic. I can take some more pics for you
Rob looks great, just 1 tip , I would notch the holes in the dash where it bolts up to the steering column .at some point you will have to install the column and will have to take dash in and out a few times, notching it will keep you from dropping the column completely and possibly damaging your headers if you have them, I was planning on installing the dash once - I'm up to about 6 times so far.JOHN
Great tip! I am going to do that! I have pulled and installed the dash several times too. I have already installed my vinatage air system. Sorry I don't know what "bezels" are. If you are talking about the dash vents, I am using the cheap Vintage Air 67 chevelle repro ones. they are all black and cheap looking. I have the same center dash vent you have too.
I got a 67 chevelle suspensioned out and scrapping quarters it so low i put a lq4 in it and moved motor mounts back about 2 1/2 to 3 inches putting most of weight behind front wheels, problem truck oil pan is too big hangs too low 2 inches off ground wondering if f body oil pan would clear a body frame
.. Classic youngsta
Youngsta,
the f body pan and the CTS-v pan are the most commonly used stock pans in the A-Body converstion. Some are also using the Hummer pan, but that hangs low too. I used the CTS-v pan. The F-Body pan has been modified quite a bit in this swap too I believe.
what fans are you running and how much also a link to them would be nice thanks kevin
Kevin,

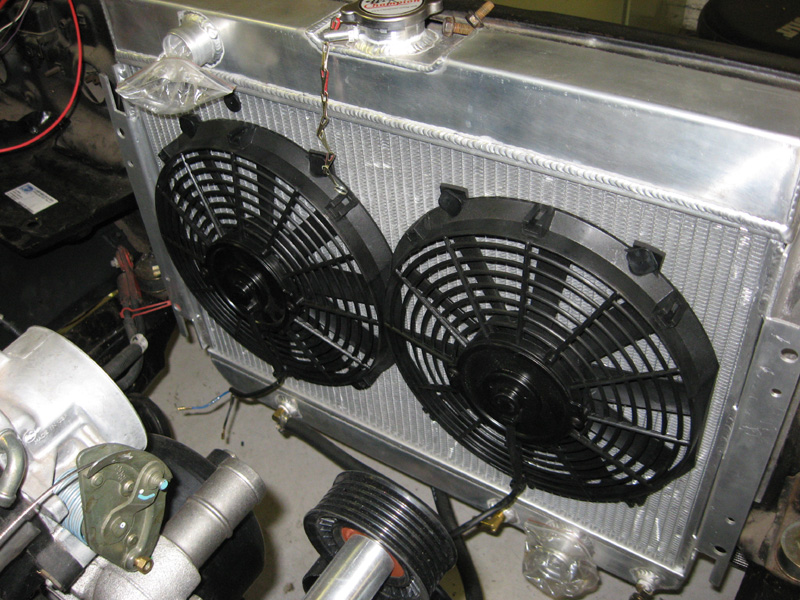

I bought the Champion radiator and fans from a guy on ebay. His store was named classic radiators or something like that. His seller name was rrrjsc but I can't find him there anymore. Sorry.
