Ray could you send me a wiring diagram of how you have it wired, I have my nitrous wired to come on at the release of the transbrake, I dunno exactly how I"m gonna get the nitrous to turn off and the 2 step to turn on with one button, I am sure it can be done I think I must be just missing something (nitrous is on when the arm switch is on, WOT switch is on and the transbrake is NOT on, transbrake is on, it turns off, so I can put my foot to the floor on the brake and then just let go of the button, same way I want the 2 step to work as well)
Trans Brake cars like to take a set and move forward just a tad. this prevents it.True Drag Race Transmission companys(Select) will always tell you to wire the TB and LL together.There is another button on the shifter that controls the LL for burnouts.
Ray T
__________________ New Setup for 2009
431CI LSX ,Diamond 14.5 Compression Custom Pistons,Cam Motion Solid Roller,Jesel Shaft Rockers,CNC 400CFM LS7 Heads,Callies Crank&Rods,Performance Induction LS7 Intake w/4500 Accufab,BS3 EFI Controls by Mike Moran,GZ Vacuum System,MadMan Motor Plates&Manual Rack,Burkhart lightweight spindles and Aeromotive brakes,Ron Davis Custom Radiator,ARH Stepped Racing Headers,Chassis Now Certified for 8:50s
REDGAR - If you have it activated through your brake switch, like mine, then if you need to scrub some time at the big end by hitting the brakes if you're still on the gas at the same time then you will hit the preset rev limiter. That's why I have the master switch on my dash to shut it off. I launch, assess everything and make sure the car is going smoothly, flip the toggle switch off, then watch for my competitor, and do whatever I need to do from there (brake, lift, 2-foot it, and etc.).
With the master switch off it will never activate, with it on it will when the brake is applied and I try to rev past my launch RPM it activates. I don't have a line lock yet so I roll into the burnout box and make sure the switch is off, foot brake my burnout, and during my walk up to the line I flip the 2-step toggle on, light the first stage light, bring it up on the 2-step, slowly lift the brake enough to creep into the second bulb, then just lift my foot off the brake when the tree drops and off I go...
__________________ John Pszenyczniak - Bolt-on only 95 Formula A4 11.561 @ 118.00 w/ 1.572 60' Thanks for parts, advise, and support from the LT1 bolt-on experts at Herron Performance and to Frank Cahall @ CPT for the best Race Rebuilt 4L60E on the market.
Useful links: search, and my tire/gear caculator
Location: In the garage, working towards a 2900 lb raceweight :D
Posts: 10,781
If you hook this thing up to the transbrake switch, can it, like the transbrake be activated only when the switch is down? I have my nitrous wired so that it is disabled by the transbrake so I can put my foot to the floor then let go, brake comes off and nitrous turns on.
Ideally I want to put one of these on my car, but have it activated by the transbrake button like the brake and the nitrous disable is so that way everything's normal unless the button for the brake/2 step is on.
Can it be wired that way? I sent the wiring diagram to the guy @ lingenfelter but I never heard back form him to see if it would work that way.
If you hook this thing up to the transbrake switch, can it, like the transbrake be activated only when the switch is down? I have my nitrous wired so that it is disabled by the transbrake so I can put my foot to the floor then let go, brake comes off and nitrous turns on.
Ideally I want to put one of these on my car, but have it activated by the transbrake button like the brake and the nitrous disable is so that way everything's normal unless the button for the brake/2 step is on.
Can it be wired that way? I sent the wiring diagram to the guy @ lingenfelter but I never heard back form him to see if it would work that way.
the problem with the clutch switch and brake switch is that the circit is closed when not depressed. I just ran off the wire going to the brake lights that gets 12V when you hit the brakes. It ties into a relay that then controls it all
If you hook this thing up to the transbrake switch, can it, like the transbrake be activated only when the switch is down? I have my nitrous wired so that it is disabled by the transbrake so I can put my foot to the floor then let go, brake comes off and nitrous turns on.
Ideally I want to put one of these on my car, but have it activated by the transbrake button like the brake and the nitrous disable is so that way everything's normal unless the button for the brake/2 step is on.
Can it be wired that way? I sent the wiring diagram to the guy @ lingenfelter but I never heard back form him to see if it would work that way.
Yes you can do it this way.. We wired mine up exactly like this.. 1st stage of nitrous is on a wide open throttle switch.. The transbrake button on the steering wheel disables the nitrous when pressed, but also activates the LPE 2-step at the same time.. Press the button, put the bitch on the 2-step, release the button and the 1st kit is on and your movin!!
__________________ 98 Z28 Radial Race Car Cert'd to 8.50's - Carbed 408, Glide, 9in, NOS Fogger
The second generation Lingenfelter launch controllers/2-steps should be shipping by the end of July (or maybe the first day or two of August).
People who have back orders for the existing design will automatically get upgraded to the new design at no extra cost (the old price). The new launch controllers will be a little more expensive ($274.95 vs $249.95).
The new features include:
custom molded low profile glass filled Nylon case for much higher temperature resistance and access to the adjust settings without having to remove the case cover
dedicated timing retard trigger wire so you can activate the launch controller via 12vdc or ground and still use the timing retard feature
a 3 bar MAP sensor input harness and boost based timing retard adjustments
an analog voltage output wire so you can output the timing retard from our controller to EFILive, HPTuners, DashDAQ, etc.
increased timing retard authority (compared to the LNC-001R)

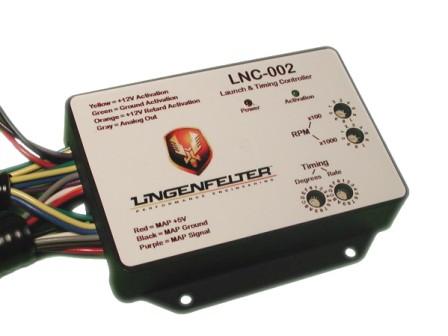

Here is a picture of one of the first assembled units:
I will get better pictures and a more complete description posted in the next couple of days.
We should have them up on the web site and eBay store in a couple of days as well. The LNC-001R is still on the web site but we are out of them so if you order the LNC-001R you will really get an LNC-002. We took them off the eBay store but they should be back up in a couple of days.
The biggest delay will probably be me getting the updated instructions done.
__________________ Jason Haines, Project Director
Lingenfelter Performance Engineering
